The Solfa Cipher (NSEC17 Write-Up)



Between May 19th and 21st, 2017, I’ve participated to the NSEC 17 Capture-the-Flag (CtF) event held annually in Montreal, QC. As usual, the team and I had a blast spending days and nights solving challenges and drinking free beer. Among the challenges was a two-part cryptographic puzzle printed on the first and last pages of the passport of Rao’s Intricate Kingdom – the country part of the story line of the event. The challenge was divided in two parts: a Braille encoded message and the second part was encrypted using the Solfa cipher, which I had never heard of before. As such I decided to learn more about it and complete a write-up for the challenge at the same time. I’ll first quickly cover the Braille part of the challenge, then move on to the Solfa part of it and the decryption process.

The Second Half of the Flag

Upon entrance at the NSEC competition this year, participants received a passport designed to be stamped based on events happening during the CtF. The back of the front cover contains a sequence of dotted symbols which can be recognized quickly as Braille as shown in the figure below:

Braille-encoded message in Rao's Passport
Figure 1: Braille-encoded message in Rao’s Passport at NSEC’17

As most of you probably know, the Braille writing system was developed for the blind and visually impaired individuals to be able to read using touch. Examples of braille can often be found on elevators. The system is based on a matrix of 3×2 dots which can be blank or filled. Each dot is numbered from 1 to 6 as shown below:

Braille Matrix Numbers
Figure 2: A matrix of the 6 dots representing an individual character Braille

Each character of a natural alphabet can then be associated with a specific matrix configuration. For example, a simple Braille-English translation is shown below:

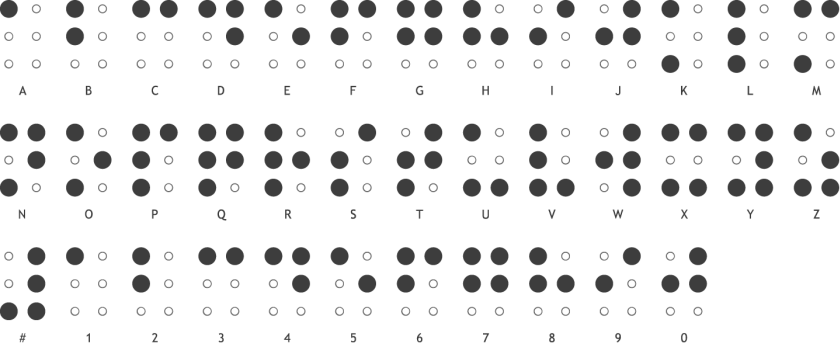

The Braille Alphabet
Figure 3: The Braille Alphabet (linked from

Additional “shortcut” symbols are used for specific sounds, punctuation, symbols and words. The figure below shows some examples of common words in Braille:

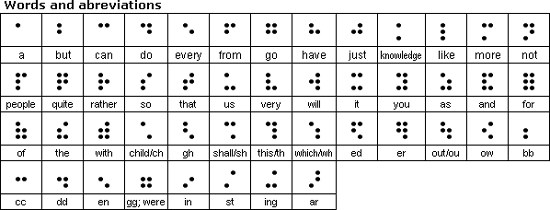

Braille for words and abbreviations
Figure 4: Braille for words and abbreviations (from the Tennessee Council of the Blind)

Additional abbreviations can be found in [1]. Going back to the passport, we can obtain the transcription using Unicode:


We then translate into English and obtain the following translation from Braille to English.:

G I S THE  (Cap) P L A T Y P U S
T O O B T A  IN  A  C O M P L E T
E F L A G . (Cap) G L O R Y T O
 (Cap) R A O

Table 1: Resulting message from translating from Braille to English.

Putting everything together, we obtain the first part of the flag included in the passport:

The second half of the flag is the word Platypus. Add x after the first half to obtain a complete flag. Glory to Rao

First Half of the Flag

The second part of the flag is much more obscure and less documented than the first one. The inside of cover page contains a small partition holding a total of 4 staves: the first one appears to be a chord while the last 3 are simply a sequence of notes. We noticed that the first staff contains a treble clef, the label “KEY-997” and is shorter than the other staves. Furthermore it contains the type of notes

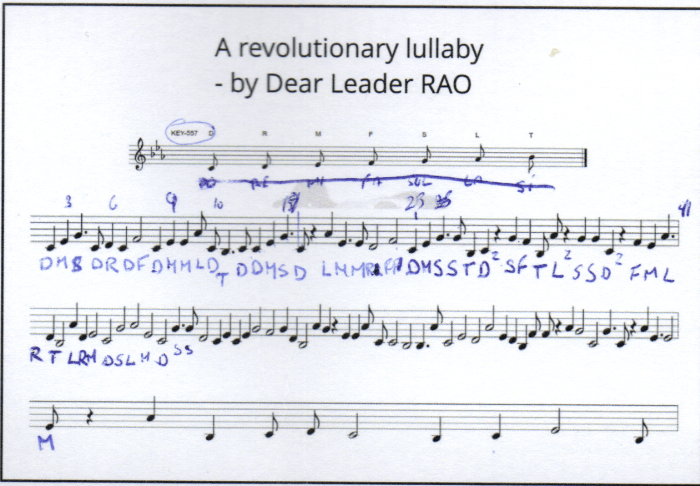

Music Sheet in the Rao's Passport
Figure 5: Scanned copy of the lullaby on the last page of Rao’s passport.

Clearly, there is something in there, but how do we extract a flag out of this? My knowledge of music theory is extremely low and was basically non-existent prior to this challenge. As such feel free correct me in the comments if I misrepresent a musical concept or term.

The Cipher

Googling for words relating to music and cryptography will return a limited set of relevant sites, the first relating to musical cryptograms, which is not quite was we are looking for at the moment. The second page is about the Solfa Cipher. Once you’ve found the latter website, you’re almost at the solution, but let’s take a better look at it.

The Solfa cipher is a substitution cipher, but rather than using an alphabet to encode keys and cipher text, it uses musical notation. The encryption/decryption key is defined using a clef, a tonic, a mode and a rhythmic unit. The links will provide a much better definition of each different item than I could ever do in this article. However, be aware that the 4 elements mentioned above can have the following values:

Clefs Tonic Mode Rhythmic Unit
Treble C, C# Minor 1/4 (Quarter)
Alto D♭, D Major 1/8 (Eighth)
Bass E♭, E Phrygian 1/16 (Sixteenth)
F, F# Dorian
G♭, G Lydian
A♭, A Mixolydian
B♭, B Locrian

Table 2: Valid values for the properties of the Solfa key.

Like any symmetric cipher, a key is needed to encrypt the message, which will have to be shared with the intended recipients of the message. In this case, the key is in musical notation rather than a sequence of characters or bytes. The first staff of the page represents the key of the cipher, as the label clearly shows. The encryption key is composed of the four elements mentioned above: a treble clef, in C minor, using 1/8 as the rhythmic unit:

Solfa Cipher Key used in NSEC17
Figure 6: Solfa Cipher Key used in the passport at NSEC ’17: treble key in C minor with a 1/8 rhythm is used.

Each note is linked to a the seven pitches of the solfege, i.e. Do (D), Re (R), Mi (M), Fa (F), Sol (S), La (L) and Si (T). The “KEY-554” is only a randomly generated label and has no significance in the algorithm. With the key known, this puzzle becomes a chain of translations from musical notes to a list of tuple of tones and rhythms using the standard matrix below:

Do (D) Re (R) Mi (M) Fa (F) So (S) La (L) Ti (T)
1:  T I A S E N O  :1
2:  K Z X J Å Æ  :2
3: R C H M D L U  :3
4: F Y G P W B V  :4

Table 3: English language translation matrix usually used for the Solfa cipher.

The columns represents the pitch, while the rows represent the duration of the note (1, 2, 3 or 4).

Let’s go through a complete example to better understand the process. Consider the staff below:

Example of a Solfa-encrypted message
Figure 7: The word “SOLFA” encrypted using the Solfa Cipher

In this case, we assume that we are using a 4/4 meter i.e. the length of a single measure.  That means that each measure has a duration of 4 units. The key used to generate this melody was in C major, with a clef of Treble and a rhythmic unit of 1/4 (Quarter). The first note is Fa and starts at the first time unit, i.e. 1. Therefore the first note can be translated to (F, 1). The Fa is 4 units long, meaning that the second note, Si, also starts at time 1, translating to (T, 1). However this time, the note is only 2 time units long and thus the third note – Sol – starts at 3 and lasts only 1 time unit. Thus the third node is translated to (S, 3) while the fourth one will be translated to (D, 4). Finally, the last note is a Mi and starts at 1 and thus is translated to (M, 1). Putting everything together we have (F, 1), (T, 1), (S, 3), (D, 4) and (M, 1). Using the matrix above, we obtain (F, 1) = “S”, (T, 1) = “O”, (S, 3) = “L”, (D, 4) = “F” and (M, 1) = “A” and thus the plain text is the word “SOLFA”. This process is better represented in the figure below:

Decryption of the Solfa-encrypted word "SOLFA"
Figure 8: Decryption of the word “SOLFA” by reading the notes and their duration.

Going back to the NSEC challenge, we have a much larger melody to decrypt. Luckily, we have the key and the same process as the one we used to decrypt the cipher text in figure 8 applies.

Solfa-encrypted Message from the Passport
Figure 9: Solfa-encrypted Message from the Passport in NSEC ’17

Let’s take the first 9 notes listed in the figure above. For each of the note, we first determine its pitch (do, re, mi, …) and then its duration. The key given specify a 1/8 rhythm, as such a Eighth note will be worth 1 time unit, a Quarter note will be worth 2 time units and the half note will be worth 4 time units. Unless specified otherwise, the meter is 4/4, i.e. a measure is 4 time units long.

First 9 notes of Solfa encrypted for NSEC
Figure 10: The first 9 notes of the Solfa-encrypted message and the initial tempo of the melody.

Using the figure above, we can then extract the notes and their time from the partition:

The note is used as the column and the time as the row to read the corresponding value defined in the translation matrix. We can put a quick script what will read these notes and find the corresponding characters. Using table 3, the notes above will be translated to

d, 1 m, 3 s, 1 d, 4 r, 1 d, 3 m, 4 d, 1 m, 3

Table 4: First 9 characters decrypted from the partition at the back of the passport.

Applying this process to every note in the figure 9, we obtain the following message:


Or with spaces and punctuation added: “The first half of the flag is the word subdermal. Concatenate with the second half to obtain a complete flag. Glory to Rao“. Mixing the 2 halfs of the flag, we get the string “SUBDERMALxPlatypus” and get 5 points out of it.

In case you are wondering what the melody in figure 9 sounds like, you can download the resulting MIDI file here: A Revolutionary Lullaby.


Braille and Solfa are quick and fun ways to encode/encrypt data in unusual ways. While they obviously should not be used for serious application, they could potentially be used as novel ways to exfiltrate data and bypass some filters. For example, a text file could be Base32 encoded and the padding character (“=”) could be replace with the number 1 for example. Then the resulting string could be encrypted using the Solfa cipher, transformed into a MIDI file and then uploaded to a remote location. I highly suspect that most network security appliances would not pick up on MIDI file being uploaded, although it would probably strike a careful analyst as suspicious. Feel free to experiment with it. A partial Python implementation can be found here.


[1] Simpson, C,  The Rules of Unified English Braille, Second Edition, 2013, International Council on English Braille,, Visited on 2017-06-05

[2] Chambers, John, An ABC primer,, Visited on 2017-06-04

[3] Solfa Cipher, 2013,, visited on 2017-06-06

Additional Readings

Schneier, Bruce. Applied cryptography: protocols, algorithms, and source code in C. john wiley & sons, 2007.

Carter, Nicholas. Music Theory: From Absolute Beginner to Expert: The Ultimate Step-by-step Guide to Learning Music Theory Effortlessly. United States: CreateSpace Independent Platform, 2016. Print.

Software Exploit Development – Fuzzing with AFL


It’s quite impressive to look back in the past to the early days of software vulnerabilities and observe the ongoing dance between new  mitigation and new exploitation techniques. Powerful fuzzing tools are now common place and operated on a daily basis by IT corporations and security labs; either to find crashes in their software or others’ program, seeking workable exploit out of it. New research is continuously presented to mitigate new procedures while multiple organizations develop new counter-mitigation tricks. In this post, we’ll overview the entire software exploitation process: from fuzzing with American Fuzzy Lop (AFL) to exploit development with gdb-peda and pwntools. For this purpose, we will develop a quick 64-bit program exhibiting a glaring buffer overflow vulnerability. We will then fuzz it to find that vulnerability, analyze the results and development an exploit for it. A video is also available.

The Vuln1 Vulnerable Program

While we could use a known vulnerable program online, we decide to craft our own quick C program so we can understand all its facets. The program below uses two characters buffers of 32 characters; one to hold the username and the other one to hold a password. To manage user input, we used the well-known insecure gets() function, which fails to check buffer boundaries and leads to buffer overflows.

Once executed, the program first asks for a username and a password. The inputs are stored in the login and passwd variables. Their value are then compared with the expected value using strcmp(). If the credentials entered are “root” and “1qazxsw2”, then a “Access Granted.” message is printed out to the console, otherwise “Access Denied.” is shown to the user and the program exits.

To simplify the exploitation process of this exercise, we will compile this program with absolutely no memory protection, i.e. NX will be disabled and no stack canary. NX is usually enabled to prevent code to be executed directly from the stack, which there is no need for other than exploitation purposes. As for stack canaries, they can detect stack overflows by adding an extra value to the software stack. If this value is not found when the function returns, an exception is thrown to prevent further execution. Nowadays, these protection schemes are enabled in a vast majority of cases, but we adopt simplicity rather than realism for this post. Disabling these protection mechanism can be achieved using the following GCC command:

The  -fno-stack-protector will disable the stack canaries while the  -z execstack makes both the heap and stack executable. To verify that these options have not been included, we can use a nifty tool call checksec which is included with pwntools, which will will present later in this post. By executing  checksec vuln1 we confirm that both the stack canaries and NX bit are disabled:

Checksec reports on 2 additional security mechanisms other than the stack canaries and No-eXecute bit. While these concepts are out of scope for this post, we will simply present them

With our target created, we are now ready to start fuzzing it to uncover the buffer overflow it contains.

Fuzzing with AFL

AFL is a popular open-source and free fuzzer that has been leveraged to discover vulnerabilities in a large set of applications and libraries. Before starting AFL, we need to instrumentalize our target using the afl-gcc compiler. The AFL compiler will add code around the source in order to maximize coverage. To compile the source code with AFL, use the same command used above to compile Vuln1 using afl-gcc rather than gcc or use the associated Makefile

The resulting binary is the one that will be used with AFL, but when analyzing the crash later one, we will do it with the gcc compiled binary. Until then, let’s learn how to use AFL to assess the Vuln1 program.

A critical aspect of fuzzing is to craft meaningful test cases, e.g. inputs that will maximize code coverage by exploring all potential paths of the targeted program. The vuln1 program is simple and only has 3 paths:

  1. Username is invalid;
  2. Username is valid, but password in invalid;
  3. Username and password are valid.

In order to reach these 3 paths, we will design our test cases appropriately by creating 3 files. The first file will have 2 lines, none of them containing the appropriate credentials, the second file will have the right username, but an invalid password and the third file will have both correct credentials. AFL will read the contents of each file and feed each line to the stdin of Vuln1. Create a directory called testcases and in it, create 3 files representing these cases. The name of the files does not matter.

test1.txt test2.txt test3.txt

After creating these 3 files, create another directory called results, which will contains the results of the fuzzing run. At this point you’re ready to start AFL using afl-fuzz, the actual fuzzing program. You can do so with the following command:

Where -t ./testcases specifies the directory containing the testcases, -o ./results specifies the output directory and ./vuln1 is that target program. If you run AFL for the first time, you’ll likely be greeted with the following warning:

Core_pattern file warning when running AFL
AFL Warns that the core_pattern file must be changed.

Just follow the instruction given and you’ll get rid of this message. Simply a shell as root using  sudo bash and type the suggested command, i.e.

Retry to start AFL using the same command and you should have no issue this time. A screen will appear and present you with quite a few statistics. This AFL Readme file explains all of these fields very well, and should definitively be read and well understood. For now, let’s focus on the “Overall Results” section.

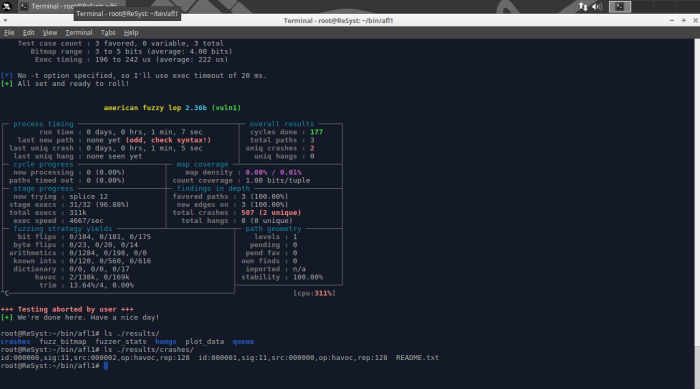

Fuzzing Vuln1 with AFL - Results
Results of Fuzzing the Vuln1 Program

Two rows of this section are particularly interesting in this example:

  • Total paths; and
  • Unique crashes.

Notice that after a few seconds, the total paths field is 3, which is what we expected based on the code of vuln1. As such, once we reached 3 paths, we can stop AFL by pressing Ctrl-C, as it will not find anything new. In the real world, we have no idea how many paths may be possible. As such AFL provides color codes to help you assess if it’s time to stop. Another field that can help is the last path found. When no new paths have been found after a while, AFL may have cover most of the code it can find and is unlikely to find anything new. Finally, the most interesting field is the unique crashes, which indicates that some of the inputs, stored in the results directory, have successfully crashed the program and should be investigated. We have 2 files in the results/crashes directory:

Each file contains the input that crashed the program so you can reproduce the event and investigate to see if the crash is exploitable.

We can confirm the crash and observe an segmentation fault by piping the contents of the crash to our vuln1 program:

The next step is to analyze the crash data and determine if it can be converted into an exploitable vulnerability. Spoiler alert: it can.


This short post is a simple introduction to AFL, a powerful fuzzer that can be leveraged on source code and binaries to find potential vulnerabilities. This step is usually the first step in exploit development. In the next post, we’ll use PEDA to analyze the results found here and determine it exploitability.


See Also

  • Related YouTube Video: Software Exploitation Research: Fuzzing with AFL

Further Reading

Reversing the Trendnet TS-402


The Trendnet TS-S402 is a discontinued network storage enclosure that was sold to individuals for personal data storage. Like every Internet-of-Things (IoT) device, it runs on software programmed and/or configured by the manufacturer before shipping it to the end-user, i.e. the firmware. Firmware versions 2.00.10 and below of this particular device have a serious vulnerability allowing remote root access . This target thus provides an excellent exercise for reverse engineering while providing an example of a vulnerability that is unfortunately way too common in IoT: backdoors by design. In this post, we will introduce Binwalk and provide the background necessary to do the same on a large variety of firmware for consumer-level devices, using the TS-S402 as a practical example. A video of this post is also available.

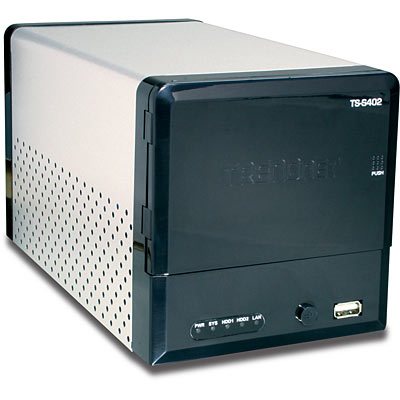

Trendnet TS-S402
The Trendnet TS-S402 Network Storage Enclosure (from

The Trendnet TS-S402

Before reversing any device, it’s important to actually understand its functionalities, components and any other piece of information that may help along the analysis of its firmware. The webpage of the product highlights the following features:

  • Access your data from the Internet (FTP) and on your local network
  • Microprocessor: Marvell 88F5182
  • IDE Controller: ITE IT8211F
  • Real Time OS: Embedded Linux (Kernel Version 2.4.25)
  • File Protocols: Microsoft Networks (CIFS / SMB) Internet (HTTP 1.1) FTP, FTPS (SSL FTP)

Why are these facts important? Not all of the will be useful, but some may provide you with an overall idea of what to expects once you start analyzing the firmware file. In many cases, especially with consumer-level devices, reversing firmware is fairly straightforward and common open-source tools will do the heavy lifting for you. But if you move on to industrial firmware, awareness of the device is important as you will be faced with unheard operating systems, libraries and unknown file formats. In this case, we can expect to see a Linux-based Operating System (OS) hosting a HTTP and FTP server, along with Samba compatibility. The manufacturer is even generous enough to provide the underlying microprocessor, which can be helpful when conducting even deeper analysis for vulnerabilities in the binaries.

Reversing the Firmware

The vulnerability we are looking for is present only in versions 2.00.10 and below of the firmware, which you can download from the repository of the company. Unzip the archive and you’ll to obtain the following files:

  • TS-S402_FW_2_00_10.bin
  • readme.txt
  • release_TS-S402.txt
  • REMOTE_PACKAGE_2_20.bin

It’s always a good idea to read the release notes and README files. Doing so may save you time and headaches trying to figure things out. If you’re into bug hunting, the release notes can be useful to list the changes and patches included in this version, providing potential hints to patched vulnerabilities of previous versions.

The two “.bin” files contain the programs and OS of the device. In this case, based on the filename, the TS-S402_FW_2_00_10.bin is the main firmware file and thus, the focus of this post. The first step is always to check if we can determine the file type by using the file command. If we are lucky, it is a known file type and some application exists to extract the relevant files/information out of it.

However we are not so lucky. The file command returns “data”, which means it found the file to be binary data without any specific structure or format. So we will need to use a more powerful tool: binwalk. Binwalk is very useful reverse engineering toolkit which can analyze and extract files from unknown binary files. However note that it can also return quite a few false positives. The only way to recognize them is with experience and trial-and-error. If not already done, install binwalk with apt using  sudo apt-get install binwalk and run the following command:

The command above asks binwalk to check out the TS-S402_FW_2_00_10.bin file and try to find interesting files or structures inside it. We use the “-x lzma” argument to eXclude any findings about LZMA-compressed data: these are false positives in this case. You will obtain the following result:

In other words, there seems to be a 32-bytes header followed by a GZip-compressed file. At this point, we want to carve this gzip file out of the binary file for further investigation. You can use the dd command to do so, but binwalk provides the -e option to Extract files for you.

The carved files will be outputted to a directory labelled _TS-S402_FW_2_00_10.bin.extracted, in which you will find a single file called 20, which is the offset of the file in the larger firmware. Using the file command again, we now get a more interesting result:

This time, the file command clearly recognized a TAR archive, meaning we can simply untar the file with the command below:

This archive contained even more files: a uImage and a filesystem:

  • uImage
  • rootfs.armeb.squashfs

The uImage is the boot loader of the firmware and you will often find this file or something similar in most Linux-based firmware. Analysis of the uImage will be left for another post. For now, we are interested in the filesystem contained in rootfs.armeb.squashfs, which as its name implies, is a SquashFS. To access the files it contains, we can normally use the unsquashfs tool, however in this case doing so won’t work:

Depending on how the file system was created and the development software used, it may have incompatibilities with the way unsquashfs expects the file system to be structured. As a workaround, we will use Sasquatch, which is more flexible when it comes to extracting file from non-standard Squash file systems. Clone the project and build the code by following the instructions n the file, or you can download a pre-compiled binary for Ubuntu and variants. Now let’s try again carving out the files, but with Sasquatch this time by typing  ./sasquatch rootfs.armeb.squashfs . After a while, Sasquatch will extract all files in the squashfs-root directory, at which point you can finally access the files hosted on the targeted device.

Find the Backdoor

There is a fairly obvious backdoor hidden in the file system. Go ahead and explore the files and configuration and see if you can find it. When you are ready read on.

Most commercial devices are accessible remotely via a web interface. The web server and its contents are therefore a good starting point to hunt down potential vulnerabilities. On the TS-S402, the web application is located in the /home/httpd directory. The partial listing of the contents of this directory is included below:

As you can see, one of the web page is named “backdoor.html”; quite an obvious indicator that something is wrong. If you look at the webpage, you’ll notice that it seems to enable the telnetd daemon, thus allowing Telnet connections to the device. Unless specially configured to be blocked in the network firewall, this web page should be accessible to anyone on the network, potentially anyone if facing the Web. All that is missing right now is credentials to access the device. Let’s look at /etc/shadow to see if we can potentially figure out the default password for the root account:

Well, there isn’t any password setup for the root account. So in other words, anyone who can access the backdoor.html page on the device can enabled remote Telnet connections, and then login as root. While I haven’t tested it as I do not own this device. this vulnerability was previously confirmed and reported.


This post provided an example of reversing the firmware of a consumer-level IT appliance to locate vulnerabilities allowing remote access to the device. Such vulnerabilities may seem trivial an unimportant until a botnet such as the Mirai botnet comes along and use tens of thousands of these vulnerable devices – which are rarely updated – to DDoS websites across the web. Hence the need to understand the techniques and skills require to pwn these devices in order to defend them.

See Also

Learn More



Installing Feng Office on OpenBSD 6.0


Feng Office is a Web project management application. It allows management of projects, tasks, documents and enables online collaboration with co-workers and other organizations. It can provide a multitude of business services including billing and scheduling among others. In the previous posts, we installed OpenBSD 6.0, setup our web server and then deployed WordPress on it. In this post, we continue to develop our web server by installing Feng Office.

Setting Up OpenBSD 6.0

Feng requires php-gd package for image processing. This package has dependencies on the xbase60.tgz OpenBSD package. If you did not install this set during the OpenBSD installation, you can do it now using these commands:

If you don’t have access to the Internet, you can simply use the archive from the OpenBSD 6.0 CD and unpack its contents using the command at the second line in the code listing above.

We can now proceed with installing the php-gd package. This can be done using the pkg_add application. When asked which version of the package you wish to download, select the same version as your current PHP installation. In this case, PHP 5.6.23 is installed. If you are unsure about yours, type  /usr/local/bin/php-5.6 --version to retrieve it.

Unlike Linux distributions, pkg_add does not automatically modify the required configuration files. As such, you need to manually modify the PHP configuration file to load the php-gd extension. Edit the php-5.6.ini with vi /etc/php-5.6.ini  file and add the following line in the extension section:

Since we modified the configuration file, we will need to restart the PHP service:

Now that we have setup OpenBSD to be compatible with Feng, we will configure the database and then move on to the actual install of the web application.

Setting Up the Database

In the previous posts, we installed MariaDB and set it up for a WordPress site. The same exact steps apply for the Feng Office application. Login into the MariaDB database with mysql -u root -p and follow these steps:

Create a database schema for the Feng Office application:

Then create a user for the application and select a strong password for it unlike the example below:

Afterwards, grant your new user the privileges require to modify your database. In this case, we allow the user all privileges on the db_feng database:

And then exit MariaDB by typing  quit . We are now ready to install the Feng Office application.

Installing Feng Office

You’ll first need to download the application from the Web using the ftp program. You’ll also need to install unzip since Feng Office uses a zip package. If you want to avoid installing the unzip package, you can always download Feng on another workstation, unzip it and repack it using tar. Then upload it to a third party location and re-download it using ftp. Otherwise install unzip with pkg_add unzip and then download Feng with ftp:

As we did in previous tutorial, we confirmed the integrity of the package. The MD5 hash is provided on the SourceForge website by clicking the “i” icon. We will now unzip Feng into its own directory on our web server:

Feng Office has quite a few files and after a few seconds, all files should be extracted. In order to run the installer, we first need to set specific permissions on some directories. As such, we’ll make sure the following directories are readable, writable and executable and change their ownership to the web server:

With this done, browse to your Feng Office home page from a remote workstation. You will be greeted by a welcome page which details the installation procedure. Click Next.

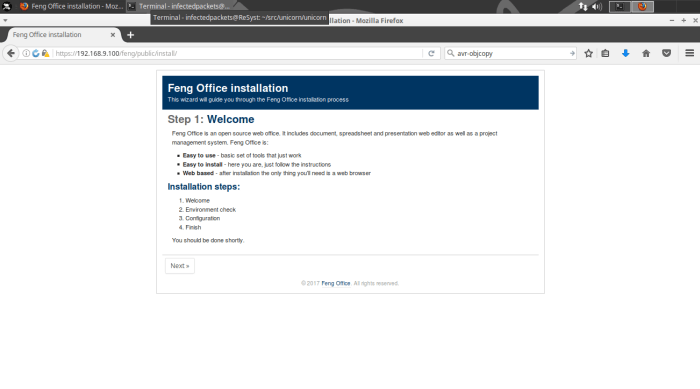

Welcome Page of the Feng Office Installer
The welcome page of the Feng Office installer

The second page of the installer verifies if all requirements for the application are met. If there is an item highlighted in red, then you will not be able to proceed. The most likely issues are limited file permissions and missing PHP extensions. If everything is green, click Next.

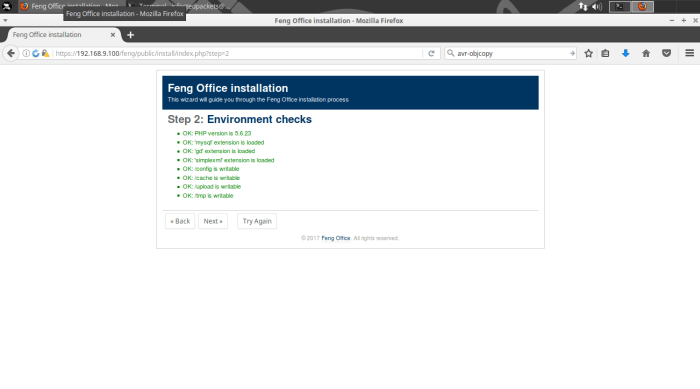

Requirements Verification for Installing Feng Office
Feng Office verifies if all requirements are met to install and use the application.

The third step is where you provide the information about the database. Fill in the required information with the specific values for your database setup. An example of valid values for our example are:

  • Database Type: MySQL
  • Hostname:
  • Username: fg_user
  • Password: p1234
  • Database Name: db_feng

You can leave the remaining settings to their default values and once satisfied, click Next again. You then reach the last page of the installer, which You’ll reach the installation page and you should get a Succcess! message Click on Finish.

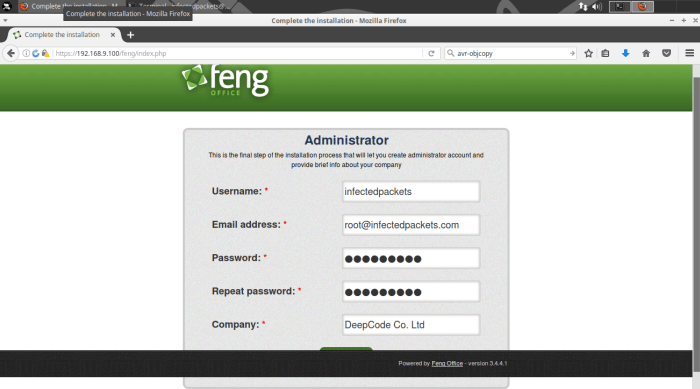

Feng Office Administrator Account Creation Form
Administrator account form for Feng Office

After clicking Finish, you’ll be immediately redirect to the user account creation form. This is the final step before using the application is to create an Administrator account. Fill in the form and click Submit. You will be redirected to the login page. Login and that’s it! Next steps include configuring your new Feng Office application by creating users and customizing it. You should also remove write permission to the /var/www/htdocs/feng/config and change the ownership back to root:daemon.


Feng Office is widely used by multiple large public and private organizations and thus, is a fairly popular web application which like many others, fits perfectly with an OpenBSD 6.0 server. Like in the WordPress install, you should attempt to plug information leaks by removing README and CHANGELOG files and test your application via a rigorous penetration test. With a well-configured OpenBSD server and secure database, the likelihood a a major breach occurring is greatly reduced, but it always depends on how well or badly it’s configured and used.


See Also

Learn More

Installing WordPress on OpenBSD 6.0 with Httpd



In the previous posts, we setup a minimal but secure web server using OpenBSD 6.0. In this post, we start from a fresh install with httpd, MariaDB and PHP 5.6.23 setup on the host. In most cases, you may now want to install a web application on it. One of the most popular is WordPress. If you have followed all the steps in the previous tutorial, installing WordPress will be fairly easy. However, because the web server is sand boxed in OpenBSD, many issues can arise. Additionally, introduction of new application may also introduce new security concerns. In this tutorial, we go through the basics of setting the database and configuring the application. We’ll also assume that you have the networking aspect configured and working. You can also consult the accompanying video.

Setting Up WordPress 4.7 on OpenBSD 6.0

To install WordPress on OpenBSD 6.0 using the native httpd web server requires quite a few steps, but most are straightforward and requires only some Linux command shell knowledge. It’s a good idea to be well-versed in the Bash scripting language and basic Linux/OpenBSD knowledge. In any case, following the steps below will get you going with your new WordPress blog in no time.

Downloading WordPress

Once validated, unzip and untar the archive into your web root directory, likely /var/www/htdocs using:

This will untar all files into /var/www/htdocs/wordpress. Feel free to rename the wordpress directory to anything you’d like.

Configuring the Database

In previous post, we installed MariaDB and thus this section will assume you have installed this database application. Otherwise, refer to the documentation of your database to use the proper SQL statements to create databases, users and manage permissions.

Log into the MariaDB database using  mysql -u root -p your_password . If you are logging from a remote location, use the  -h host argument. Once logged in, we will conduct 3 steps:

    1. Create a database for the WordPress application:

    1. Create a user for WordPress to use in order to connect to the database by using the following SQL statement:

    1. Grant permissions to the new user in order to edit the database and tables as required:

Now, the WordPress application has a place to store data on our database. Before we proceed thought, I encourage you to look at the ~/.mysql_history for a glimpse of what happened while you were doing the steps above. As you will see, the password for the user has been logged into this file. Remove this file with rm ~/.mysql_history  and let’s disable logging to prevent such leaks by adding this line in your rc.conf.local file:

Installing WordPress

From a remote host, use your favorite browser and go to https://<your_address>/wordpress/ and the installer should popup automatically. The first step is create the configuration file by filling information about the database. So gather the following information, which we have from the previous section and click “Let’s Go“:

  1. Database name: Database name use with the “CREATE DATABASE” SQL statement, i.e. “db_wordpress
  2. Database username: Username enter in the “CREATE USER” SQL statement, i.e. “wp_user
  3. Database password: type in your password;
  4. Database host; Enter or ::1. Do not leave it as “localhost” as we want to use the sockets;
  5. Table prefix; Prefix for each table created. Unless you plan to have multiple WordPress sites, leave the default value.

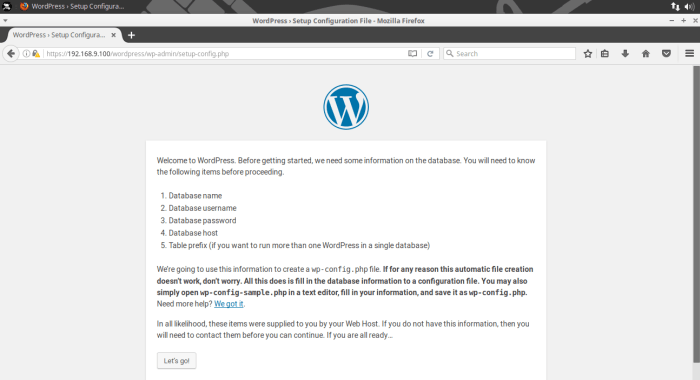

Wordpress Installer Welcome Page
The WordPress Installer will guide you step-by-step on setting it up.

On the next page, enter the required data and click “Submit“. If every thing is setup right, you will be prompted to continue with the setup of the site. However, you may also get a blank “step2” page, i.e. the URL will be “setup-config.php?step=2” but nothing will show up. This problem can be caused by many different things. First, make sure you have setup PHP to use your MySQL database by enabling the proper extensions in the php-5.6.ini configuration file. See previous post for an explanation on how to do this.

Next issue you may encounter is a warning that WordPress cannot create the wp-config.php file. This is mostly due to permissions issues with /var/www/htdocs/wordpress/. The best option is to manually create the file by copy-pasting its contents. Another alternative is to temporarily change the permissions of the directory to allow write permissions with  chmod 777 /var/www/htdocs/wordpress for the installer to create the file. Doing so allows anyone to write and execute code to your directory and as such, it must be change immediately after you are finished installing and configuring WordPress.

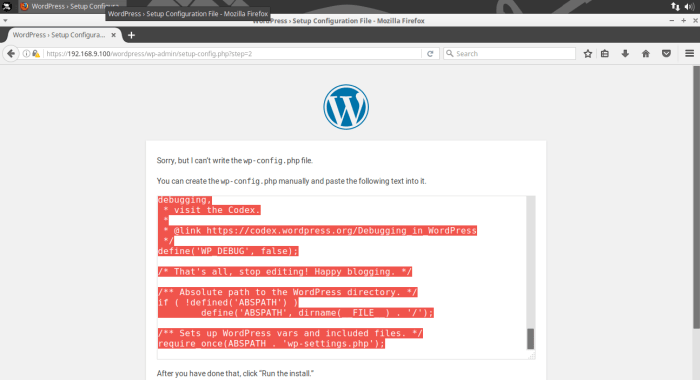

Wordpress Fail to Create Wp-config.php
WordPress warns that it could not create the wp-config.file.

Quick Hardening

Before calling “Mission Accomplished”, take some time to test your new site and set the proper file permissions. Create a test post and try to upload an image to it. You may find that it fails, again because of permission issues. According to [1], you should have the following permissions for your WordPress install:

  • Folder set to 755;and
  • Files set to 644, except wp-config.php should be 440 or 400

This can be done with the following commands;

Furthermore, note the following quote from [1]:

No directories should ever be given 777, even upload directories. Since the php process is running as the owner of the files, it gets the owners permissions and can write to even a 755 directory.

Meaning that you should avoid the temptation to solve your uploads issues, or any other issues by setting full permissions, even the upload folder. Based on [2], all files outside the wp-content directory should be owned by your OpenBSD user account so they cannot be modified. The owner of the wp-content will be set to www and will be writable, allowing uploads of files themes and plugins. Note that once you chose your theme and plugins, you could further harden your blog by restricting the wp-content/themes and wp-content/plugins directories as some attackers hide web shells in those.

Retest to make sure it works.

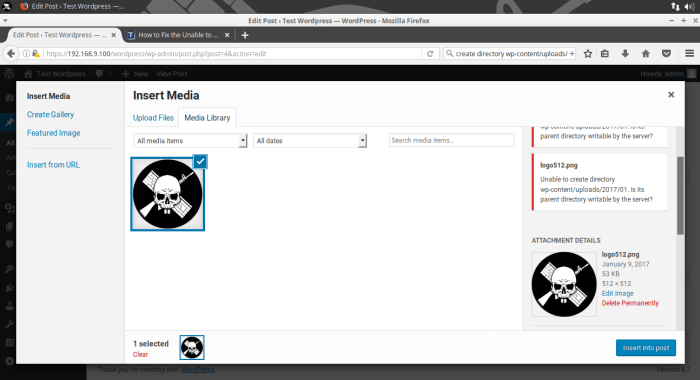

Upload Failures due to Directory Permissions
Setting the minimal and proper permissions on the Uploads directory is critical.

One last quick thing you may want to do is delete unneeded installation files.  WordPress should have remove them for you, but just double check. You can also remove the readme.html and any release notes that may be present, this way, it will be harder for an attacker to find the version of your WordPress installation.


WordPress becomes insecure when adding plugins, which introduces the majority of new vulnerabilities. As such, attempt to avoid unnecessary plugins and themes and uninstall them once they are unneeded. Also enable auto-updates. There are quite further actions you can take to harden your WordPress install, and I’d recommend reading the reference at [1]. You can also review the database permissions you have granted to the “wp_user” in MariaDB, and possibly restrict them to simply INSERT/UPDATE/SELECT/DELETE instructions. Then test your installation with wp-scan, a great, free and open-source WordPress vulnerability assessment.


[1] Hardening WordPress, Core Directories/Files,, (accessed on 2017-01-09)

[2] Correct File Permissions for WordPress, StackOverflow,, (accessed on 2017-01-16)

See Also

Secure WebServers with OpenBSD 6.0 – Setting Up Httpd, MariaDB and PHP



In this tutorial, we setting up a web server on OpenBSD 6.0 using the native httpd web server, MariabDB and PHP. There can be quite a few issues popping up unlike other systems, mostly due to the fact that the web server is “chroot jailed” during execution. In other words, the web server is sandboxed and cannot access other parts of the operating system, which requires more work than other similar setups on other distributions. However, this greatly decreases the damages if your server gets whacked. In this post, we setup a minimal web server that will allow you to host simple web content. I’ll assume you have an OpenBSD 6.0 VM created with root access to it. From there, we will stand up our web server with HTTPS, install MariaDB and PHP. Please note that this tutorial is not meant for professional/commercial settings, but for personal and educational uses. A video version of this tutorial is also available.

Standing up a Minimal Web Server with Httpd

The strategy we will employ is to create a very minimal web server, test if it works as intended, and then enable additional features as we go along. So first, we’ll start by enabling the httpd daemon. To do so, first copy the httpd.conf file from /etc/examples/httpd.conf to /etc/ by typing  cp /etc/examples/httpd.conf /etc . Open the copied file as root using vi or another text editing tool if you have any install. In the file, you will delete all the examples provided and only keep the “minimal web server” and “types” sections:

Make sure you save your changes and now start your web server with the following command:  /etc/rc.d/httpd -f start . Make sure you include the  -f , other you may get an error message. We will fix this later. If everything goes well, you should get an “httpd(ok)” message. Otherwise, there is likely an error in your configuration file. You can confirm by using  httpd -n .

Let’s confirm everything works so far. Retrieve your IP address using  ifconfig em0 and using another host on your network, browse to http://<your_ip>. If everything works as expected, you will see something similar to the figure below:

OpenBSD WebServer - 403 Forbidden
Receiving a 403 Forbidden error from the OpenBSD web server.

We received a 403 error because we do not have any web pages created yet and by default, httpd prevents directory listing – which is a good thing. So let’s create a quick index.html web page. Use the following command  vi /var/www/htdocs/index.html and type the following:

Save the file and point your browser to http://<your_ip>/index.html. You should see your web page. If not, make sure you created the file in /var/www/htdocs and you haven’t made a typo in your URL. Also note that if you go to http://<your_ip>/, you will also end up on your web page. By default httpd looks for “index.html” and serves this web page when none is specified.

Fantastic. We got ourselves a web server. But not a very secure or useful one unless you want to host Geocities-like webpages. Next, we will enable HTTPS on our web server and redirect all traffic to it. We’ll need to do this in 2 steps:

  1. Create a certificate for your web server; and
  2. Setup httpd to use your certificate and HTTPS

First, we’ll need to generate a SSL private key. This is straightforward by using openssl:

The server.key file is your private key and must be secured! It’s very important that nobody else other than you have access to it. Next, we will use this key to generate a self-signed certificate. This is also done by using openssl:

The command above basically requests OpenSSL to generate a certificate (server.crt) using our private key (server.key) that will be valid for 365 days. Afterwards, you will be asked a couple of questions to craft the certificate. Since this is self-signed, feel free to enter anything. Once done, the first step is completed. Next, we will modify our configuration file again and update out minimal web server to tell it to use HTTPS:

Every time your modify the httpd.conf file, you will need to restart your web server for the changes to take effect. Use  /etc/rc.d/httpd -f restart do so and test your website again, this time using https://<your_ip>. You should be greeted with a warning message fro your browser, warning you that it cannot validate the certificate. That’s because it is self-signed. Click on “Advanced” and add it to the exceptions. Afterwards, you will be serve our web page via an encrypted link.

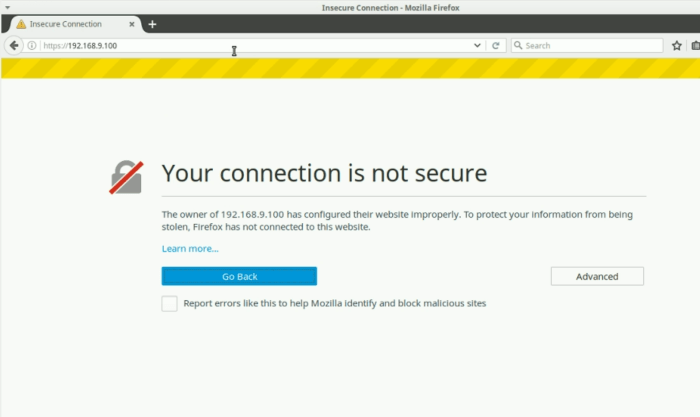

Web Server Certificate Exception
Receiving a warning from the browser on self-signed certificate.

So at this point, we have a functioning web server over HTTPS. However, unencrypted communications are still enabled. We would like to have ALL users over HTTPS. This can be done by replacing this line in httpd.conf:


Anyone using http://<your_site> will be automatically redirected to https://<your_site>.

Setting Up MariaDB

Installing the database is quite simple in contrast with many other activities we need to do. First, we’ll need to download some packages, so make sure you have the PKG_PATH environment defined with a mirror containing the packages you need. If not, select a mirror on and define your variable:

And as root, install the mariadb-server package:

Once completed, install the database using the included script by typing  mysql_install_db and when completed, start the mysqld daemon:  /etc/rc.d/mysqld -f start . The last step is to configure it by running the  mysql_secure_installation . The script will ask you a couple of questions:

  1. First, it will ask you to set a password for root. Choose a good password. Long simple passwords can be more efficient than short complex one that you won’t remember;
  2. It will then ask if it should remove anonymous users. Select “Y” to remove them;
  3. When asked if it should disallow remote root access, answer by the positive to prevent root access from remote hosts;
  4. Choose to remove all test databases; and
  5. Press “Y” to reload all privileges in the database application.

You are now done with installing the database. Before moving on to the next section, confirm that everything is working by login into MariaDB:

If everything went fine, you will be given access to the database engine. Type  quit; to exit the application.

Setting Up PHP

The last step of this tutorial involve downloading and install PHP. Very few webpages nowadays rely solely on static HTML, and I suspect most will want to install web applications later on, so let’s setup PHP. First, download some of the required packages. Note that additional packages may be needed depending on the web applications you wish to install later on, but for now, let’s setup the core PHP packages:

There are several versions of PHP available on the OpenBSD repository. What is important is that you select the same version for all packages you install. For example, at the time of writing version 5.6.23 and 7.0.8 were available, but php-mysql 7.0.8 was not, thus we select 5.6.23 for all PHP packages to prevent issues later one. Dismiss any packages ending with “-ap2” as these are for the Apache web server. For the purpose of this tutorial, we will select version 5.6.23 every time we are asked.

Before starting up PHP, we have a couple of things to do. First, we need to tell httpd to send PHP pages to the PHP processor. We also need to specify the PHP processor that we have a database it needs to be aware of. So let’s start by modifying our httpd.conf file again by adding a section about .php files. Also, we’ll add a “directory” section to tell the web server to look for “index.php” files first instead of “index.html“:

Next, let’s modify the PHP configuration file to enable MySQL. We do so by adding extensions to the /etc/php5.6.ini file. Open this file as root and add the following lines under the “Dynamic Extensions” section:

Since we modified configuration files, we’ll need to restart the httpd and php-fpm daemons. Do so with  /etc/rc.d/httpd -f restart and  /etc/rc.d/php56-fpm start . Hopefully, you will get “httpd(ok)” and “php56_fpm(ok)”. Otherwise, you may have introduce a typo in your configuration files or some packages may have not downloaded/installed properly.

Wrapping Up

One last thing we will do before calling it quit for today, is to make sure the httpd, php56-fpm and mysqld services are started on bootup of OpenBSD. To do so create a new rc.conf.local file in /etc/ using  vi /etc/rc.conf.local and type the following in it:

At startup, OpenBSD will use this file to initiate the services and the PKG_PATH environment variable. You will not have to use the  -f anymore when restarting the httpd daemon.


So in this post, we have enabled a HTTPS web server, along with a MariaDB and PHP, allowing use to serve dynamic content on a OpenBSD 6.0 machine. At this point, you should be able to host basic dynamic content. However, if you try to install more complex web applications, you will need an extra few steps in many cases. Sometimes, you will need additional packages and extra work to connect to the database via your web application. In the next tutorial, we will install WordPress to show some of the difficulties you may encounter with the chroot jail and file permissions of the web root.

See Also

Reversing the Parrot SkyController Firmware



The Parrot SkyController is a remote control sold for long range flights with the Parrot Bebop drone, sometimes used in the real estate sector. It enables integration of smartphones and tablets for flight control via Wifi connection, allowing transmission of real-time data from the drone. In other words, the SkyController acts as an intermediate between the flight management software (smartphone/tablet) and the actual drone. In this post, we explain how to reverse the firmware of the SkyController to be able o view the contents of the internal operating system and understand its inner workings. A lot of the information provided is based on [1] and is applied on this specific firmware. Code is provided along this post that will extract files and information from the SkyController firmware.

The Parrot SkyController Device
The Parrot SkyController Device (taken from the Parrot Store)


The firmware of the Parrot Skycontroller appears to be a well-defined format which is reused across multiple products from the company. The firmware contains 2 types of structures the header and a sequence of “data entries”. The header is located at the beginning of the file and is followed by multiple entries which contains configuration and file system information. We will look at both structures in the following sections.


The firmware header starts with four magic bytes which spells out “PLF!”. These can therefore be used to identify valid Parrot firmware files. A quick Python snippet is included below as an example.

Immediately after the magic bytes, a sequence of thirteen 32-bit unsigned integers provides additional information about the firmware. Defined as a C structure, the header would look something like this:

The header version specify the type of format used for the firmware header. Within the SkyController firmware, the value for this field was “0x0D”, possibly indicating that there are 14 variations of header formats. The header size provides the number of bytes included in the header while the entry header size specifies the number of bytes in headers of entries within the firmware. The next 5 integers are undefined at the moment, as is the before-last integer. One of them is likely a CRC32 checksum. The dwVersionMajor, dwVersionMinor and dwVersionRevision defines the version of the firmware. Lastly, the header contains the size of the file in bytes.


Each entry has a header of constant size, which is specified within the firmware header by the dwEntrySize value. In the SkyController, each entry is composed of 20 bytes used as follows:


The section type specify the type of data contained within the entry. This can be configuration data, partition details or file information. These will be explained in further details in the sections below. The entry size contains the number of bytes within the entry, without consideration for null-byte padding. This field is followed by a CRC32 value. It’s unclear at this point how this value is calculated. The last known integer is the size of the data once uncompressed. If this value is 0, then the contents are not compressed. Each type of entry have further fields defined, and these are explained below.

Firmware Entries

There are multiple types of entries within the firmware. In this section we will describes the one we came across in the file we have analyzed.

Bootloader and Boot Configuration (0x03, 0x07)

Entry 0x03 contains a binary file which appears to be the bootloader of the system based on strings contained within, however more analysis will be required to understand how it actually works. In the SkyController, a PLF file was observed, but within that PLF file, this entry had binary data. Similarly, entry 0x07 also appears to be related to the boot process as shown by the string “ecos-bootloader-p7-start-246-ge30badf”, “ecos” referring to the eCos operating system.

File System Data (0x09)

There is a  “File System Data” entry for each file contained in the firmware. As such, this entry is the most common one. Depending on whether the file is compressed or not, the structure of this entry is slightly different: when its contents are uncompressed, this entry starts with the filename (or directory name), which is a zero-terminated string. The name is then followed by 3 unsigned integers.

The first integer contains flags specifying the type of file, which can be a directory, a normal file or a symbolic link. This is specified by reading the bits 12 to 15. The 12 other bits contains the permissions of the file. Converted into octal form, the last 12 bits will provide the same format as the one used in Linux. For example:

Extracting File Permissions from the Firmware Entry
Extracting File Permissions from the Firmware Entry

When compressed, the flags are within the Gzip-compressed data. The data must therefore be first uncompressed and then, the same procedure applies: the filename will be a null-terminated string right at the beginning, followed 3 unsigned integers, the first containing the type and permissions. The remaining bytes are the content of the file. In the example below, the filename is system/pulsar/etc/boxinit.hosted. The flags are 0x000081A0 (little-endian) and the contents of the file starts at 0x32.

Partition Data (0x0B)

The 0x0B entry contains information about partitions on the device.The header of this entry is composed of 10 values. The first 4 integers are version information, the next 5 ones are unknown and the last unsigned integer is the number of partitions defined within the entry.

For each partition defined within the entry, a sub entry is available which contains further information about the partition: the device ID, volume data and the mount point on the target device. The defining structure for this entry are:

Volume type can be either RAW, STATIC and DYNAMIC. A raw partition contains no file systems, for example swap partitions. Static partitions are read-only, such as the boot partition and finally, the dynamic partitions are read-write and contains modifiable files.

Installation Data (0x0C)

This entry was included early in the file and contained another PLF file within its data. This PLF file contained a 0x00 entry, which is unknown, a 0x03 entry and a 0x07 entry. The 0x07 entry contained boot options:


I have upload a Python program [2] which will extract information and files from the SkyController firmware here. It also successfully extracted files for a Bebop2 firmware and I suspect it will work for other recent firmware. With additional work, it may reverse older ones. Repacking an unpacked firmware should be doable, but I do not have any of the device to test it out. Before doing so, determining how the CRC value for the header and each entry is calculate is required. Future work would include testing additional firmware files and implementing the program to repack an unpacked and modified firmware. Finally, reading the eCos documentation may clarify many of the unidentified values.


[1] “PLF File Format”, E/S and I, (accessed 2016-12-13)

[2] Racicot, J. “Vulture”, (accessed 2017-01-03)

Drone Insecurities


Airborne cyber attacks against drones have been conducted by hackers, criminals and state-sponsored actors. Unmanned Aerial Vehicles (UAVs) – also known as “drones” – are gaining popularity in many sectors of society. Pioneered by the military, law enforcement as well as criminals have used them. Hobbyists gather to race while retail stores will soon ship purchases with these. To reach the market quickly, security is often an afterthought. Vendors and operators underestimate the intent and capability of hackers to target their products. Thus researchers took up the challenge of showing their vulnerabilities. Reviewing current security issues and past incidents highlight the issues and their solutions before critical failures in drones causes harm. However before doing so, let’s quickly study the basic inner workings of drones.

Drones: How do they work?

Drones range from the highly complex multi-million dollars military aircraft to the toy models available for a hundred dollars. Despite this disparity, their overall architecture can be divided into 1) the aircraft and 2) the ground station. The aircraft regroups sensors and controllers needed to fly while the ground station includes software and hardware to send commands wirelessly. The ground station includes wireless transceivers, flight planning software, aircraft maintenance applications and the operators. The aircraft hosts the flight controller which processes data from sensors, avionics, communications, autopilot systems and in some cases, weapons.

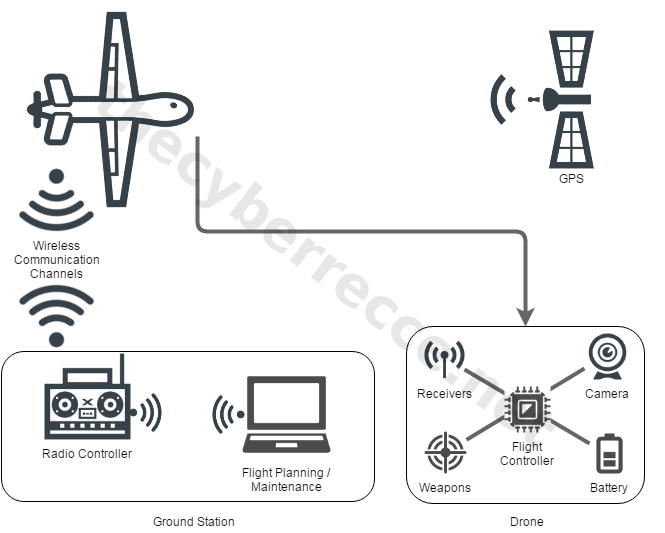

Drone System Diagram
Drone Command and Control Diagram

Operators send navigation commands via a Remote Controller (RC), which relay information via a Line-of-Sight (LOS) communication channel. In low-end drones, standard wireless networking protocols are used while higher-end ones leverage satellite communications. Data from the ground station is transmitted to receivers or the aircraft and processed by the flight controller. The controller manages the outputs from various sensors including the GPS receiver, camera and propellers. Audiovisual data is relayed to the ground station via a second communication channel or stored on removable medias. Predefined routes can be programmed using flight planning software to make the aircraft autonomous.

Cyberattacks against Drones

Communication channels are the obvious attack vector. Unfortunately calls for encryption are often downplayed and proprietary protocols, despite some may believe, are not safe from reverse engineering and hijacking. In 2009, Iraqi militants found out that unencrypted videos feed from U.S. drones were available by pointing a satellite receiver towards the drone, greatly compromising operational effectiveness. While secure channels are critical, weak encryption is as good as no encryption. It was discovered in 2015 that scrambled video feeds between Israeli UAVs and ground stations were easily decrypted using open-source software. An attacker only required knowledge of the proper frequencies. That being said, even good encryption is no  remedy when employed with vulnerable key management systems. A fact rarely discussed by security vendors pitching solutions.

Lower end drones have been hacked via known vulnerabilities in wireless networking protocols. SkyJack is an air-to-air network attack drone that detects surrounding wireless connections of vulnerable drones and reroutes them to itself, allowing the remote operator to to hijack the target. This deauthentification technique used is similar to the one seen against home wireless networks. Other attacks included cracking WEP networks between the flight planning software and the remote controller, allowing the intruder to issue commands to the remote controller.

Communicational channels are not the only weak points. Drones require information from their environment in order to navigate. The information is captured by the sensors and transmitted to the flight controller for processing. Therefore providing invalid inputs to the sensors will disrupt the aircraft. Invalid GPS data is one of the explanation for the unexpected landing of a U.S. RQ-170 sentinel in Iran. The Iranian military maintain they spoofed GPS data by broadcasting stronger signals than the ones from valid GPS satellites. By doing so they forced the sentinel to land. Such an attack was proven possible on other models. The second theory is that an internal malfunction forced an emergency landing. In either case, this incident highlighted two issues: implicit trust of sensory data sources and unexpected effects of internal errors.

Security is not only about networks; it’s also about robustness of the internal software. MalDrone is a malware compiled for ARM Linux which allows to spawn a remote shell on the target drone. The attacker intercepts an unencrypted channel between the ground station and a vulnerable aircraft to upload the malware, allowing direct access to the operating system (OS). An alternative tactic could aim to modify the firmware of the flight controller or sensors. Users rarely validate the integrity of the firmware downloaded online, allowing backdoors to be injected via man-in-the-middle attacks. Hackers may leverage social engineering to send malicious updates or exploit a vulnerability to execute arbitrary code and gain remote access to the drone. Like many Internet-of-Things (IoT) devices, drones are seldom updated by their owners and could remain vulnerable for a long period of time.


As drones continue to find increased usage in civil society, they will be subjected to further analysis. Engineers and operators should never underestimate both the capability and intent of malicious actors to target their product either for fun, profit or other malicious goals. Lessons learned by the software industry remain mostly unimplemented:; lack of secure communications, no firmware integrity validation, loose or absent security controls and slow patching of critical vulnerabilities. The success of the Mirai botnet is a result of these failings and drones are not exempt. Unlike the distributed denial of service observed, compromised drones may raise safety concerns and must therefore be secured.

Sasquatch for Ubuntu


I am an avid user of binwalk since it automates the initial reverse engineering work. It identifies the compression, if any, and file format of a given firmware fairly easily once you take care of the false positives.

Last week I built a virtual machine (VM) using a minimal install of Xubuntu Linux. My last Debian-based VM had become bloated and slow, so it was time to clean up. Surprisingly, I couldn’t get Sasquatch to compile for Ubuntu. Sasquatch is a helper tool for non-standard Squash file systems,  rampant in the Internet-of-Things (IoT) realm. It seems the patches made for squashfs 4.3 just won’t compile under Ubuntu Linux, likely due to the liblzma library included in the operating system.

Trying to fix the patches soon led to endless sequence of additional compiling errors, so I took the easy way out: compiled Sasquatch on Debian and just used the binary in by Xubuntu VM. It worked!

Anyone in the same situation can download the pre-compiled Sasquatch binary here. Happy reverse engineering!

Remembering the ‘Stakkato’ Hacks


Philip Gabriel Pettersson, best known by the pseudonym of “Stakkato” can be said to have reached legendary status within the computer security community by his numerous successful breaches of high-level targets between 2003 and 2005. Then a 16 year-old hacker from Uppsala, Sweden, he successfully infiltrated systems of large universities, the United States military, NASA and various companies, forming a worldwide network within which he operated for around 2 years before being caught in 2005 and prosecuted by Swedish authorities. This post revisits the story of Stakkato by reviewing his motivation, techniques and exploits and potentially unearth some lessons learned from these events.

Bored Teenagers

Uppsala is the fourth largest city of Sweden and is situated around 70km north of the capital. In 2003, one of its curious and smart teenager went on to challenge himself by exploring – illegally – the digital environment surrounding the city. Some of us might remember the old definition of a “hacker”, as defined by The Mentor’s manifesto [1]. Back in 2003, owning a computer was still not totally commonplace, although it was a lot more than it in 1995. Only teenagers with a certain sense of interest and curiosity about technology would consider spending most of their time on their machines. In my corner of the world, in the 90s, computer science classes were nothing more than learning to type, using word processors and creating spreadsheets. I am sure I was not the only one in the same situation and some readers may remember the frustration of not being able to pursue their hobby in depth while in school. So we spent most the classes programming VBA games or spamming other students using WinPopup to have them call out the teacher, who would struggle to explain the innocuous messages on the screen. Only at night could we connect to the net, login into our favorite BBS, IRC channels or forums to finally learn more. Virtualization was not a thing back in the early 2000s, internet connections were still slow and owning more than 1 computer was a luxury most couldn’t afford. A solution was dumpster diving around computer shops – which were aplenty compared to nowadays – or browsing eBay for scraps. Another one was to poke around systems connected to the internet. Universities were of course perfect targets – opened, poorly secured (in order to be opened) and rich with systems, software and data.

Why am I rambling about the past? Because in many ways, Stakkato may have been the same teenager than many of us were back then, but his cockiness eventually got the better of him and caused his demise. Some even proposed that by 2005, he may have attempted to venture into criminal activities by selling stolen intellectual property. In any case, let’s explore briefly his story, because I believe many who now heads IT security companies, or experts and researchers in the field all shared the same starting point, but fortunately took a different path at some point.

The Stakkato Hacks

The first suspicions of wrongdoing were noticed in 2004. Berkeley researcher Wren Montgomery started receiving email from Stakkato [2], claiming that not only did he infiltrated her university, but that he also accessed the network of White Sands Missile Range in New Mexico, stole F-18 blueprints from Patuxent River Naval Air Station and infiltrated NASA’s Jet Propulsion Laboratory (JPL) – which to be honest, have been hacked by many in the past decade [3][4][5], almost making it an initial test for debuting hackers. These claims were later confirmed by spokesmen from both organizations. They however downplayed the importance of these breaches, claiming that there were low-level breaches and that only weather information was exfiltrated. Later during the year, several laboratories harboring supercomputers connected via the high-speed network TeraGrid reported breaches. However it was only in 2005, with the intrusion in networking company Cisco Systems, that would trigger alerts from authorities and proved to be a bridge too far. Having established a foothold within Cisco, Stakkato was able to locate and download around 800MB of source code of the Internetwork Operating System (IOS) version 12.3 [6]. IOS runs on every Cisco routers and other networking devices which are often key network component of not only large commercial and governmental organizations, but also of the worldwide telecommunication infrastructure. Samples of the code was released on IRC as proof and reported by a Russian security site. The theft of the code caused a stir, many believing that individuals or groups would comb the code and craft zero-day exploits that could be leveraged on critical systems.

This activity would prove the last Stakkato and his team would be able to brag about as the Federal Bureau of Investigation (FBI) and the Swedish authorities started to investigate the leaks. In 2007, he was convicted for breaching networks Swedish universities and paid 25,000$USD in damages. He was further interviewed by U.S. officials [7] and in May 2009, he was formally inducted in California for intrusions in Cisco Systems, NASA’s Ames Research Center and NASA’s Advanced Supercomputing Division [8]. In 2010 his prosecution was transferred to the Swedish authorities.

The Tactics

The core strategy of Stakkato revolved around a trojanized SSH client he uploaded to systems he compromised. The malicious client would be used to intercept users’ credentials and send them to a third location where Stakkato and his group would retrieve them to access additional systems. Once accessed, Linux kernel exploits were used for privilege escalation on the local system and then repeated their main tactic, creating privileged accounts and eventually building a wide network of proxies to launch their attacks. The attack on the National Supercomputer Centre [9] provides insight on the tactics and size of the compromises. The methodology used was not innovative by any mean, but was applied effectively and certainly leveraged human errors to its full extend. The process can be summarized as follow:

  1. Infiltrate a system via a kernel vulnerability or stolen credentials;
  2. Disable command history, e.g prevent the system from logging your commands;
  3. Attempt privilege escalation;
  4. Setup trojanized SSH clients, backdoors and rootkits;
  5. Extract known hosts from current machine;
  6. Attempt to infiltrate extracted hosts as per step 1.

The analysts of the NSC documented logins from universities the United States, Israel and Sweden and referenced the SuckIt rootkit [10] as being installed on one of the target machine. Unfortunately for the administrators, the rootkit was discovered only after a new root password was assigned to all machines, allowing the attackers to re-infiltrate the newly cleared systems. However this time the Swedish teenager was a lot less subtle and vandalized the systems by attempting a web defacement and modifying logon messages. This time the IT specialists took down the network, inspected and reconfigured every machine before putting the system back online. Despite the defensive operation, recurring login attempts and smaller-scale compromised originating from more than 50 compromised organizations were noted between 2003 and 2005.

Lessons Learned

This story follows the same pattern observed throughout the ages, such as sprawling empires from ancient times in which the rulers’ overconfidence led them to bankruptcy, or growing organizations that stretched into markets that proved more difficult than expected. Stakkato’s network of compromised systems grew too large, he became overconfident and tempted the sleeping bears. In other words, patience may have led him to a very different path. Or maybe his arrest was for the best afterall: there is little news about him past 2010, but coincidently there is a security researcher working in Samsun bearing the same name and credited multiple vulnerabilities in the Linux kernel [11][12]. While I have no idea if this is the same individual, I would be glad to hear that he now uses his skills fruitfully.

Arguably another lesson is how simple tricks can still work if applied efficiently. All things considered, security hasn’t changed dramatically within the past 10-15 years: it has evolved, but in the end, we still rely on usernames and passwords, users’ awareness and administrators properly maintaining their networks and hosts. Humans using these systems haven’t changed much either; we will take the simplest approach to achieve our goals. Hence we select the easiest password passing the complexity filters in place and reuse it [13] so we don’t have to remember 100 variations of the same password. Large database compromises in the past few years appears to prove this behavior. We could have many passwords and store them in password managers, but then the password managers can still be trojanized or exploited [14], allowing similar tactics used by Stakkato. Eventually most people would probably not bother to execute an additional program to retrieve their password in order to login in the service they need; it simply adds an additional step.


Studying the past of computer security is sometimes quickly dismissed, often seen as irrelevant given the change in technologies, but one can easily find inspiration in the stories of hackers, malware writers and the analysts that battled to gain and maintain control of systems. Much like studying the battles of Alexander the Great or Patton, there is much to be learned from studying the techniques used and wargaming their applications in modern organizations. Would the current administrators blindly enter their passwords if a windows suddenly popped up requesting their credential for some update? Users still get fooled by fake login web pages [15] and end up with their bank accounts plundered or their Twitter account spewing nonsense to all their followers. It still works.

Obligatory XKCD


[1]    “Phrack Magazine” [Online]. Available: [Accessed: 05-Nov-2016].

[2]    J. M. L. Bergman, “Internet Attack Called Broad and Long Lasting by Investigators,” The New York Times, 10-May-2005. [Online]. Available: [Accessed: 02-Nov-2016].

[3]    K. Zetter, “Report: Hackers Seized Control of Computers in NASA’s Jet Propulsion Lab,” WIRED, 01-Mar-2012. [Online]. Available: [Accessed: 04-Nov-2016].

[4]    “Hacker Sentenced in New York City for Hacking into Two NASA Jet Propulsion Lab Computers Located in Pasadena, California (September 5, 2001).” [Online]. Available: [Accessed: 04-Nov-2016].

[5]    “Hackers penetrated NASA computers 13 times last year,” USATODAY.COM, 02-Mar-2012. [Online]. Available: [Accessed: 04-Nov-2016].

[6]    “Sweden to prosecute alleged Cisco, NASA hacker.” [Online]. Available: [Accessed: 04-Nov-2016].

[7]    D. Kravets, “Swede Indicted for NASA, Cisco Hacks,” WIRED, 05-May-2009. [Online]. Available: [Accessed: 03-Nov-2016].

[8]    United States of America v. Philip Gabriel Pettersson aka “Stakkato.” 2009.

[9]    L. Nixon, “The Stakkato Intrusions: What happened and what have we learned?,” presented at the CCGrid06, Singapore, Singapore, 17-May-2006.

[10]    D. Sd, “Linux on-the-fly kernel patching wihtout LKM,” Phrack, no. 58, Dec. 2001.

[11]    P. Pettersson, “oss-sec: CVE-2015-1328: incorrect permission checks in overlayfs, ubuntu local root.” [Online]. Available: [Accessed: 05-Nov-2016].

[12]    “Linux Kernel ’crypto/asymmetric_keys/public_key.c ‘ Local Denial of Service Vulnerability.” [Online]. Available: [Accessed: 05-Nov-2016].

[13]    T. Spring and M. Mimoso, “No Simple Fix for Password Reuse,” Threatpost | The first stop for security news, 08-Jun-2016. [Online]. Available: [Accessed: 04-Nov-2016].

[14]    “How I made LastPass give me all your passwords.” [Online]. Available: [Accessed: 05-Nov-2016].

[15]    Bursztein, Elie, Borbala Benko, Daniel Margolis, Tadek Pietraszek, Andy Archer, Allan Aquino, Andreas Pitsillidis, and Stefan Savage, “Handcrafted fraud and extortion: Manual account hijacking in the wild,” in Proceedings of the 2014 Conference on Internet Measurement Conference, Vancouver, Canada, 2014, pp. 347–358.
